(Only after Sidexis is installed )

1. Install SiTwain, you can use the link below to install off Pattersons website, or it is located in the IT Google Drive. (G:\Shared drives\IT Helpdesk\Apps\TWAIN 1.5 (1).zip)

https://pattersonsupport.custhelp.com/app/answers/detail/a_id/21219/~/sidexis-4-documentation-and-sirona-twain

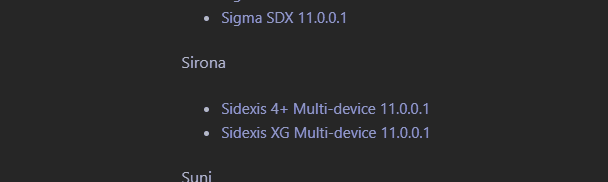

2. Once that is installed you will need to install the Sidexis intergrader for XVcapture, use the link below, and depending on if you are using Sidexis 4 or Sidexis XG install the correct version.

https://apteryximaging.planetdds.com/hc/en-us/articles/4412758829595-Current-Imaging-Downloads

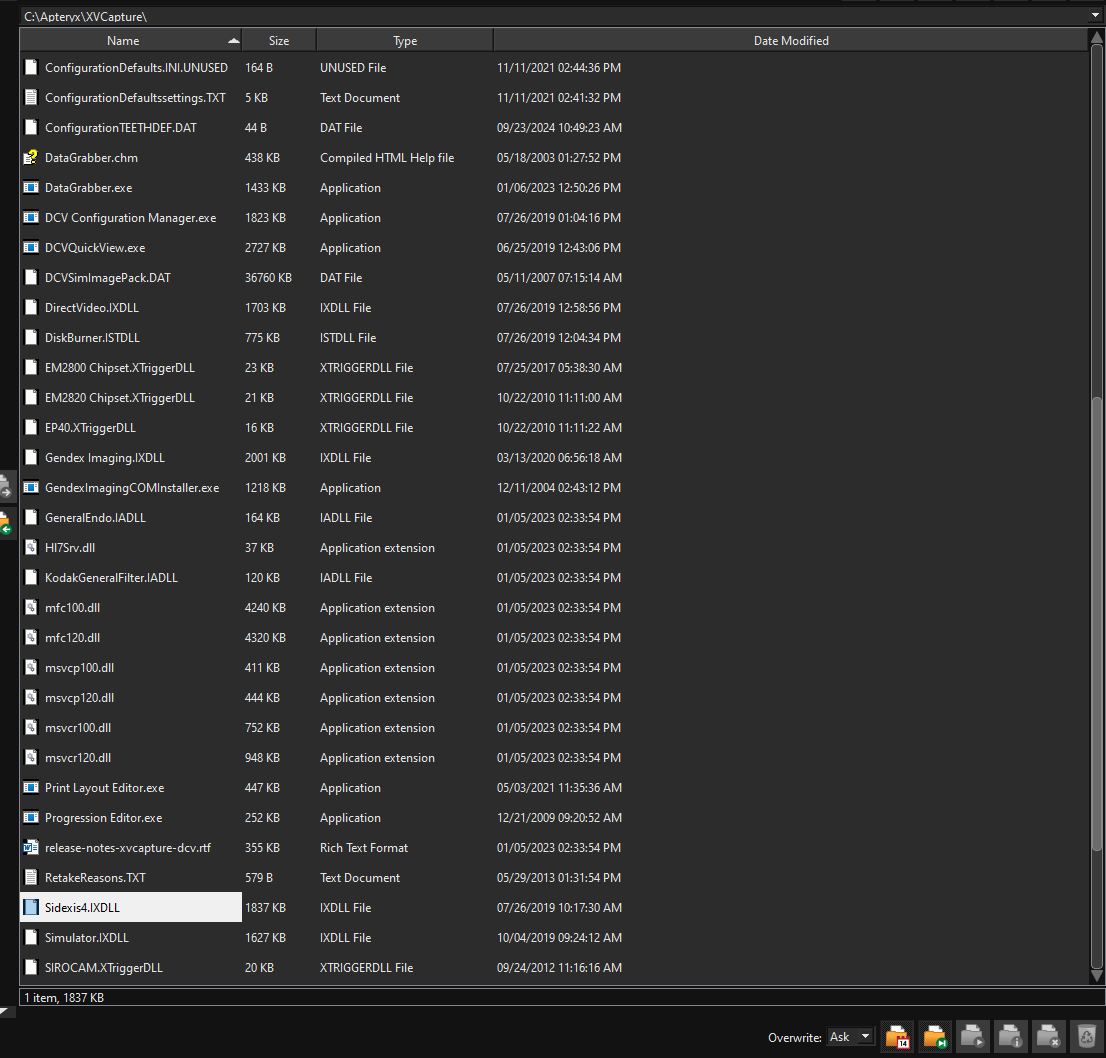

3. Once that is installed open File Explorer on the local PC and navigate to C:\Apteryx\XVCapture\ and confirm the "Sidexis_.IXDLL" file is in the folder.
(sometime can get installed just into "C:\Apteryx\" and will need to be moved to the correct folder.

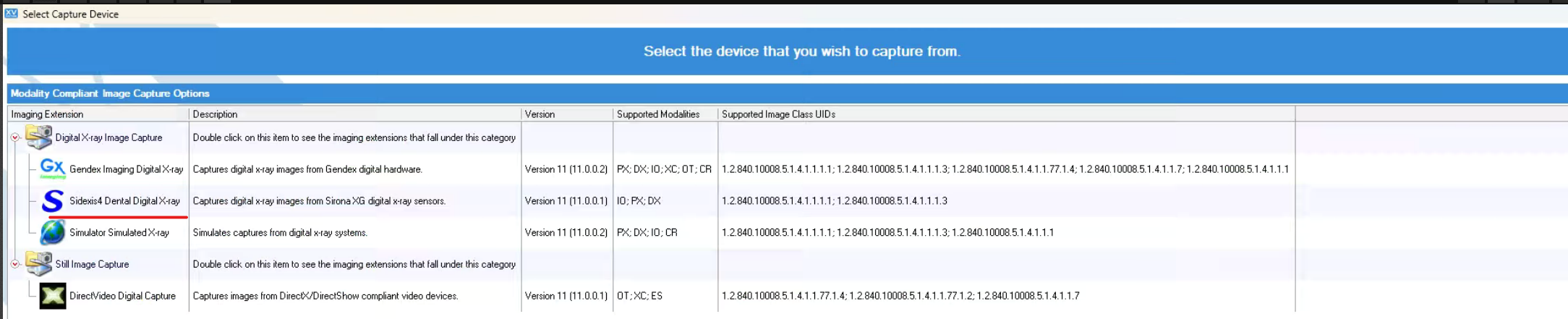

4. Once that is completed, launch XVcapture and capture an image. You should now see ""Sidexis" as capture option.
